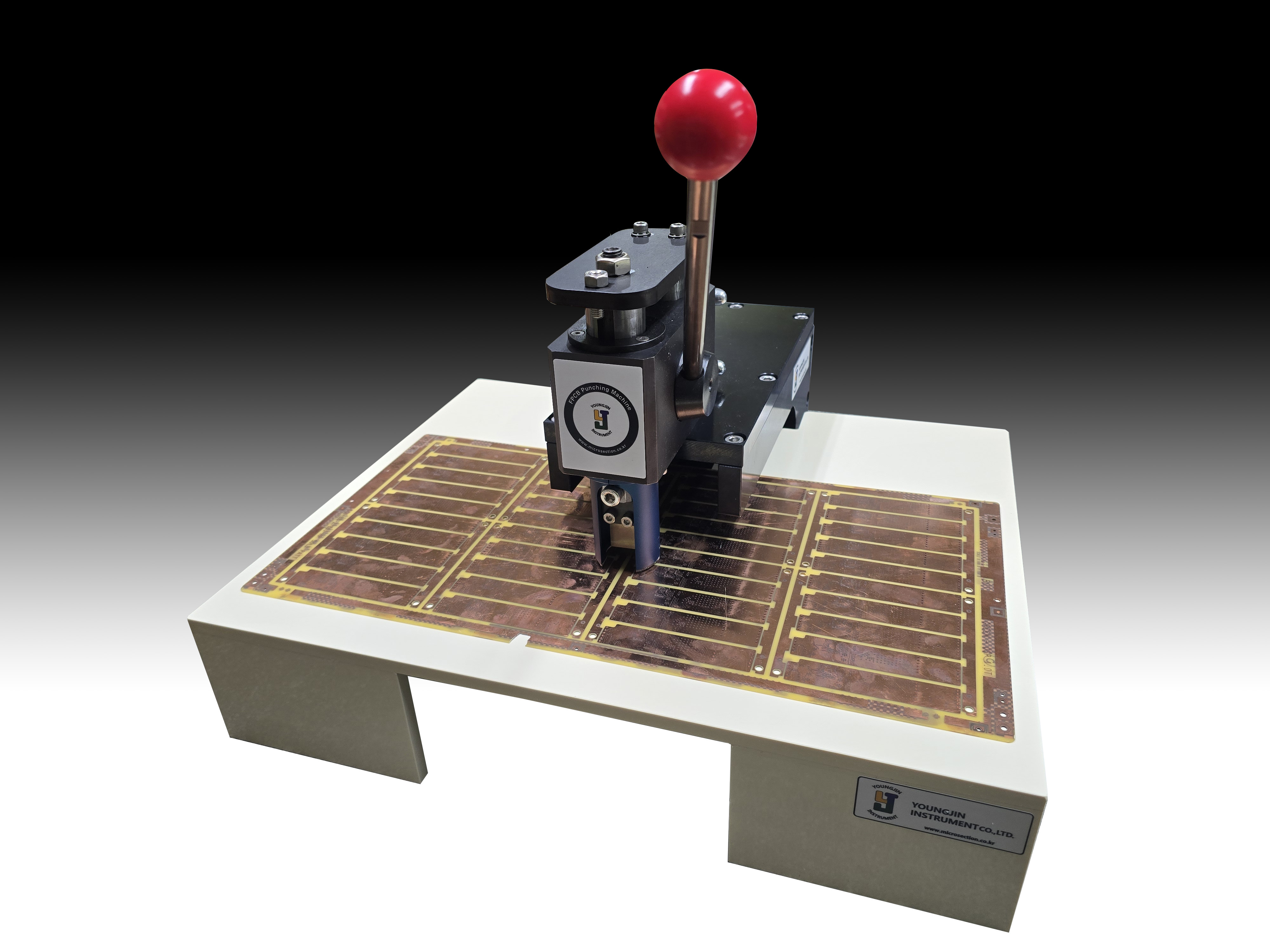

Hand Press(FPCB)
As a manual press for an FPCB substrate, it is a press equipment that can be used for samples of less than 0.1t to 0.5t, and an auxiliary guide is applied, so even when cutting a large sample, it is possible to work without damage to the product.
For the efficiency and convenience of the work, the main body is formed in a 'c' shape, so the work depth of the cutting work can be up to 250mm.
- Manual press equipment for FPCB substrates.
- Quickly, accurately and safely collect specimens of thin plate products.
- Jig size (basic 20x10) can be ordered separately.
- Samples can be collected even from large-sized products.
| Specification | ||
|---|---|---|

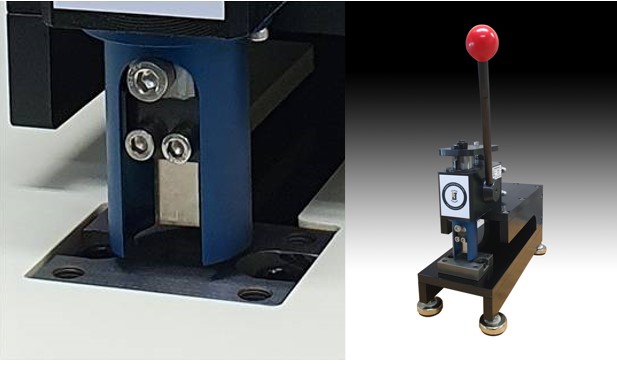

| Hand Press | Punching Machine | |
| Dimention | 180 x 400 x 420 mm | 450 x 300 x 700 mm |
| Working Distance | 250mm | 80mm |
| Jig Size | 20 x 10 mm(Enable change it.) | |
| Usage |
0.1T ~ 0.5T
(Must comply with the usage standards.)
|
0.5T ~ 1.6T |
| Weight | 23kg | 40kg |
| Guide Size | 500 x 400 x 110mm | 400 x 300 x 130 mm |
| Remark | FPCB substrate | RPCB substrate |
| Waranty | one year | |
