Metallographic Equipment

    Beam Cutting Machine The T - FPCB beam cutting equipment is the equipment for cutting FPCB boards of various thicknesses (0.01 to 1.0T). It has the advantage that various conditions can be set according to the equipment specifications, and the condition setting is simple, it can minimize sample damage compared to the conventional mold cutting method, and does not req...

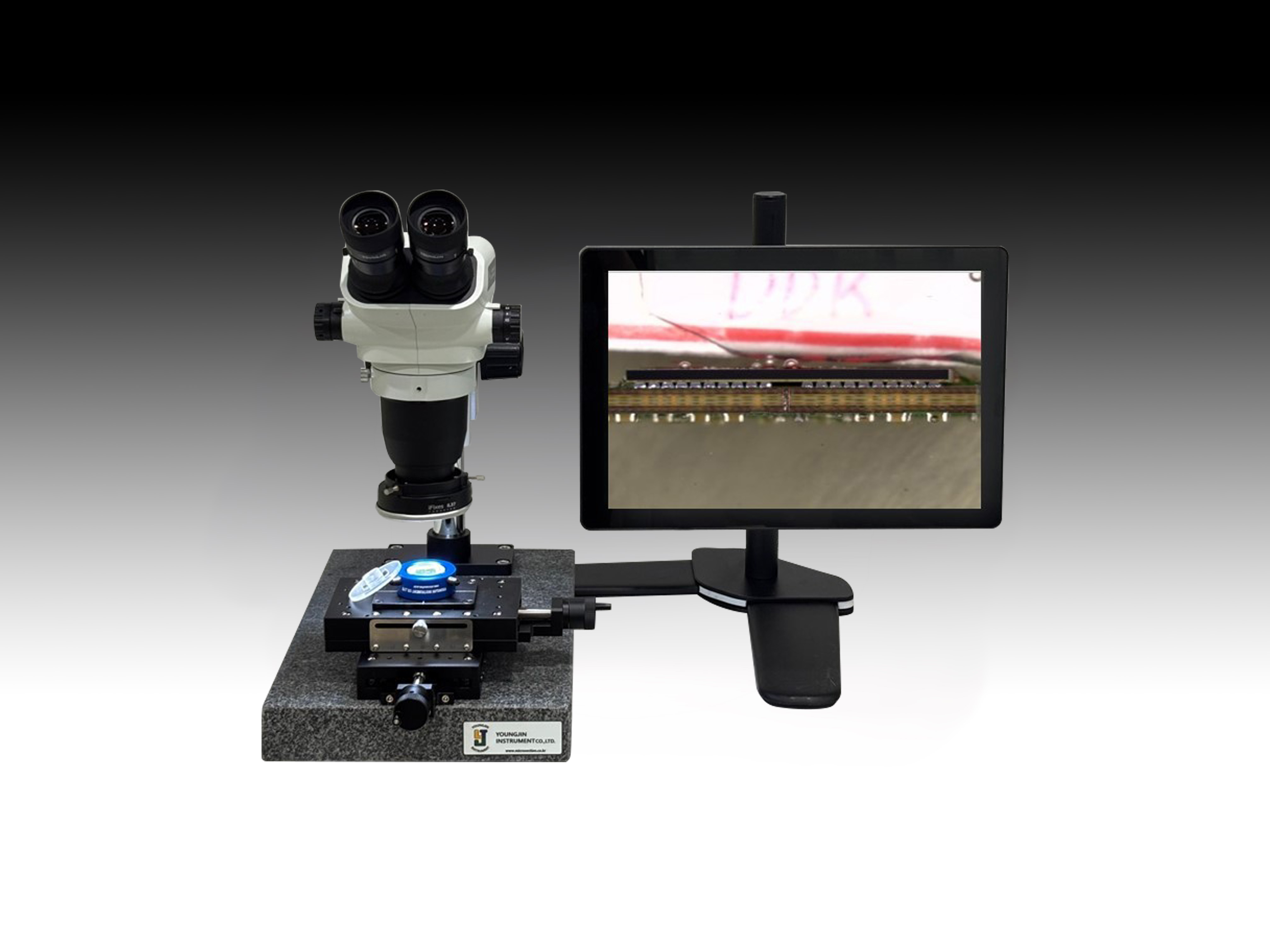

      Section Point Check Jig It is a very important process to accurately match the points that require observation during the grinding or polishing operation. In the case of fine points where visual observation or low magnification enlargement (such as Lupe) cannot be confirmed, microscopic observation of a certain magnification or higher is essential.  ...

  Auto Head Polisher   Auto Head Polisher is an automatic grinder suitable for grinding and polishing operations. By applying an on/off switch with excellent waterproof function, work operability is simple, and intuitive and fast setting is possible through the speed control knob. It uses materials such as ABS, SUS, and coating aluminum to increase safety and d...

  Auto Head Polisher D/M Auto Head Polisher is an automatic grinder suitable for grinding and polishing operations. In the case of D/M(Double Machine), you can do Fine Polishing and General Grinding and Polishing at the same time using Auto Head. By applying an on/off switch with excellent waterproof function, work operability is simple, and intuitive and fast setting is p...

    Nano Finisher It is an equipment dedicated to Fine Polishing and is suitable for precision Polishing that requires long hours of work. Even if you have general polishing equipment in use, you can add nano Finisher to the existing work step to exclude work deviation due to skill that may occur during manual polishing work or fatigue from long work, and ensure unifor...

  Polisher S/M The Polisher a manual polishing machine suitable for grinding and polishing operations. By applying an on/off switch with excellent waterproof function, work operability is simple, and intuitive and fast setting is possible through the speed control knob. It uses materials such as ABS, SUS, and coating aluminum to increase safety and durability, and...

Polisher D/M   The Polisher D/M is a manual polishing machine suitable for grinding and polishing operations. In the case of Polisher D/M, you can do Fine Polishing and General Grinding and Polishing at the same time. By applying an on/off switch with excellent waterproof function, work operability is simple, and intuitive and fast setting is possible through the s...

Semi Auto polisher Semi Auto Polisher is a manual polishing machine suitable for grinding and polishing operations. Semi Auto Head can adjust the load for each holder and maximize surface polishing efficiency with tilt-up function in the sample holder, and allows workers to work under uniform pressure under desired working conditions without having to hold the sample with their hands...

  Semi Auto Router It is an equipment for cutting samples on a panel-type PCB board. Using the X and Y tables and sample fixing jigs, samples can be collected more precisely than Sample Router, and PCB products equipped with components can be smoothly cut using fixed jigs. The dust collecting device next to the spindle removes dust generated when cutting, is easy to operate by...

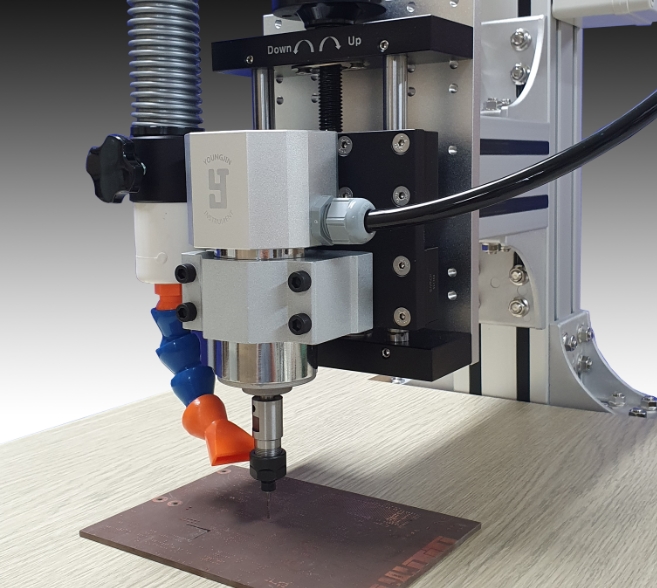

  Sample Router   The Sample Router is a router equipment for cutting samples on a panel-type PCB board. It is manufactured with a structure that is less affected by the board size, making it suitable for sampling on boards of various sizes, ranging from small boards to 500x500 boards. Dust generated when cutting can be effectively removed with a dust collector under...

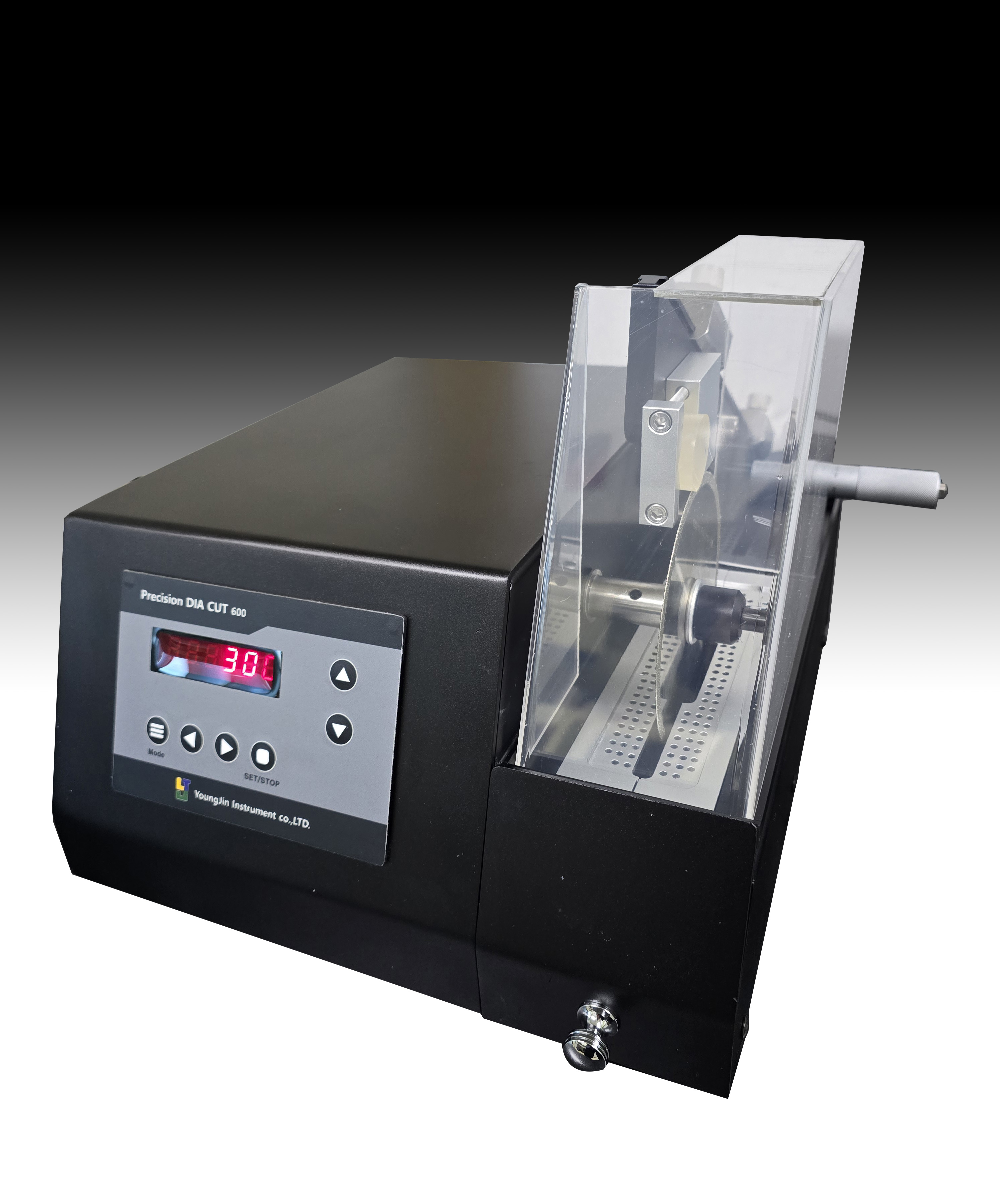

  Precision Low Speed Saw  It is a type of cutter suitable for samples vulnerable to excessive heat and friction caused by high-speed cutting or samples that require small and precise work. A sample fixing jig capable of fixing various types of samples and a weight control method using gravity are used. It is a method of supplying cutting fluid using a rotating blade, an...

  Diamond Band Saw It is mainly suitable for cutting thick circuit boards of over 0.5T  or materials with small size and strong hardness. Cutting various materials such as PCB substrate, ceramic, glass, etc. Free cutting without distinction between straight and curved lines. Keep clean by putting a coolant at the bottom of the equipment. Fast and safe usin...

  Diamond Trim Saw It is mainly used for cutting thicker boards of 0.5mm or smaller and harder materials. The operator can move the sample to cut it in the desired direction, and vertical and horizontal work using an auxiliary guide is possible. Characteristics Secure stability with Diamond Blade It is possible to quickly cut a PCB substrate, ceramic, semiconductor ...

  Grinding Gauge If the observation point can be clearly recognized with the naked eye during microsection for cross-sectional observation of the sample, it can be checked during the Grinding & Polishing stage. However, if it is difficult to directly identify the sample due to the material, shape, size, or other factors, the desired measurement point can be implemented by ...

Precision Low Speed Saw  It is a type of cutter suitable for samples vulnerable to excessive heat and friction caused by high-speed cutting or samples that require small and precise work. A sample fixing jig capable of fixing various types of samples and a weight control method using gravity are used. It is a method of supplying cutting fluid using a rotating blade, and it is no...
