YB-300M
작성자 김명길
날짜 2025-12-24 11:58:51

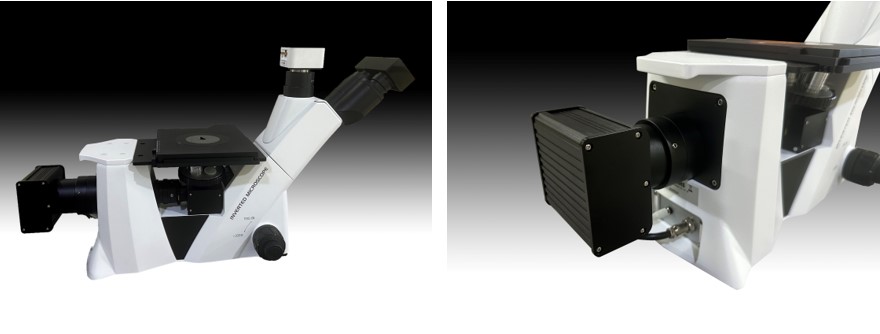

YB-300M
The YB-300M microscope is a high-spec inverted microscope. This product provides stable performance. Typically used for Bright Filed observations.The maximum magnification is 1000X, and the observation effect is better.
Polarization observation is possible and is widely used in metals and electronics.
Characteristics
- high-performance optical systems
- Three-eye head (basic), 45-degree angle of inclination
- Optimal electrostatic dust treatment system with less damage to the specimen
- You can move the wealth stand freely, and apply a five-hole rotating plate
- Widely available from reflection transmission observation to polarization observation
- Eye contact: 10X
- High magnification objective lens: 5X, 10X, 20X, 50X, 100X (optional)
- Intuitive external lighting controller applied
- It improves durability and vibration resistance by applying a stone tablet as a base.
- Strong durability, beautiful design
- a basic polarizer
- a sample-rotatable auxiliary offering stand
YB-300M Specifications
| category | standard |
|---|---|
| 아이피스 | WF10X/22mm (조절가능) |
| WF10X/22mm (조절가능, 격자선 0.1mm) | |
| 대물렌즈 | LM Plan FL BD 5X/10X/20X/50X (반색광 목적) |
| eidentopf Trinocular Head | 경사진 30°, 인형간 거리 48-76mm 빛 분포 : 100:0 (아이피스는 100%), 80:20 (삼안머리는 80%, 아이피스는 20%) |
| XY Table | 크기: 210 * 180mm, 이동 범위: 50 * 50mm, 배율: 0.1mm |
| 동축 거침 및 미세 초점 조정 단위 | 조동 스트로크 : 10mm 회전 당 미세 스트로크 : 0.2mm 미동 눈금 : 2µm |
| 편광 장치 | 편광/분석기 |
| 조명 | |
| 포장 크기 |
660 * 590 * 325mm |
| 무게 | 15kg |
| C-Mount | 0.5X. |
