UV-Vis Spectrophometer
(K LAB)

OPTIZEN POP

OPTIZEN POP Series are single-beam type spectrophotometers and offer stable performance and compact-size and reasonable price to the users. The series are categorized into POP, POP-V according to the specification of the products.

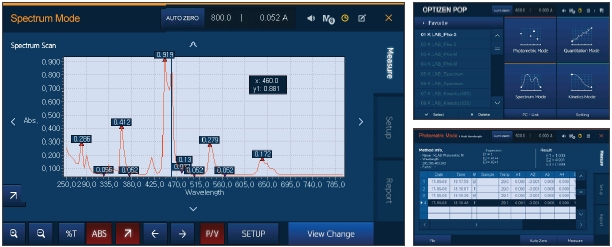

OPTIZEN POP offers four measurement modes (Photometric Mode, Quantitative Mode, Spectrum Mode, Kinetics Mode). The user can choose a suitable mode depending on the purpose to measure. The embedded S/W, touch screen interface and application facilitate the use of the device.

1. Offering a help service with a graphic type.
2. Easily and quickly call up the information that is being measured or analyzed by registering it in your favorites.
3. Link it with PC by using OPTIZEN View.
4. The measurement is possible in the optimal condition by checking the equipment’s operation time, lamp warm up condition and accumulated using time in real time.
5. The measurement monitoring is possible through choosing cell type without entering a mode and easily checking the current cell condition is possible through a change cell type icon according to the cell type condition or position.
6. Checking and recording the temperature at the analysis moment by applying the temperature measurement system.
7. It can measure automatically lots of samples by using Multi Cell.
8. Supporting convenient voice service and volume control function.

Specifications
Product Image
Product Name	OPTIZEN POP
Photometrics System	Single-beam type
Light Source(s)	Tungsten Halogen Lamp & Deuterium Lamp (Built-in light source auto interchanging motor)
Detector	Silicon Photodiode
Spectral Bandwidth	< 1.8 nm
Wavelength Range	190 - 1100 nm
Wavelength Display (setting)	≥ 0.1 nm
Wavelength Accuracy	< ± 0.5 nm (at D2 peak 656.1, 486.0 nm)
Wavelength Repeatability	< ± 0.1 nm
Slew Rate	About 7,800 nm/min
Scanning Speed	max 4,000 nm/min
Photometric Range	Absorbance : -3 A - 3 A / Transmittance : 0% - 300%
Photometric Accuracy	< ± 0.005 A (at 1.0 A), < ± 0.003 A (at 0.5 A)
Photometric Repeatability	< ± 0.001 A
Baseline Stability	< ± 0.001 A/h (at 700 nm)
Baseline Flatness	< ± 0.001 A (200 - 1100 nm)
Stray Light	< 0.1%T (220, 340 nm)
Monochromator	Czerny-Turner type with 1200 lines/nm blazed grating
Standard Cell Holder	Automatic Rotary type 8-position Multi-Cell Holder
Lamp Interchange Wavelength	340 - 410 nm (Default 370 nm)
Operating System (OS)	Windows® CE
Display	7 inch color LCD with touch screen
Control Options	Onboard with built-in touchscreen, Computer
Dimensions(W*D*H)	433 mm*381 mm*180 mm
Power Requirement	100 - 240 V; 50 - 60 Hz
Weight	8 kg
PC Software	(optional) OPTIZEN View for Windows®
